therm C 11/130 T

Ord. no. 628010

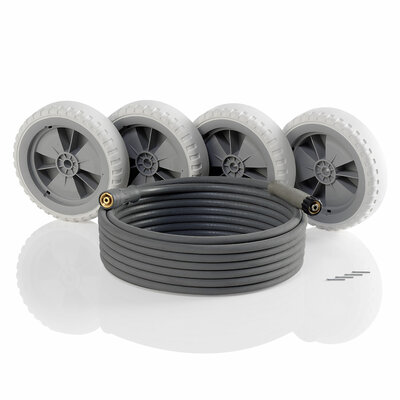

Compact design, working pressure of up to 180 bar, large wheels with solid rubber tires and impact protection at the front and rear - these are the distinguishing features of the therm C hot water high-pressure cleaners from Kränzle. Various safety devices ensure safe operation of the high-pressure cleaner at all times. The models in the therm C series are available with and without a hose reel.

Quick release plug-in system D12
Total-stop system with delayed motor cut-of
Safety shutdown
Pressure regulation
Twist-Stop screw connection
Cleaning Agent Intake
Locking brake
Water tank: Volume 3 liters
Analogue temperature regulation
Flow monitor
Combustion chamber pre-ventilation
Visual flame monitoring
Overheating protection
Burner stops when there is a lack of heating oil
Brennstofftank: 25 l
Accessory storage
Removable covers
Visual flame monitoring and Overheating protection
Convenient integrated hose reel

Operating pressure: 30-130 bar

Water output: 11 l/min

Connection Voltage: 230 V

Connection Phase: 1 ~

Connection Frequency: 50 Hz

Hot water output: 12-80 °C

Technical details

		therm C 11/130 Ord. no. 628000	therm C 11/130 T Ord. no. 628010	therm C 13/180 Ord. no. 628200	therm C 13/180 T Ord. no. 628210	therm C 15/150 Ord. no. 628350	therm C 15/150 T Ord. no. 628360
Ord. no.		628000	628010	628200	628210	628350	628360
Operating pressure	bar	therm C 11/130 30-130 bar	therm C 11/130 T 30-130 bar	therm C 13/180 30-180 bar	therm C 13/180 T 30-180 bar	therm C 15/150 30-150 bar	therm C 15/150 T 30-150 bar
Operating pressure	MPa	therm C 11/130 3-13 MPa	therm C 11/130 T 3-13 MPa	therm C 13/180 3-18 MPa	therm C 13/180 T 3-18 MPa	therm C 15/150 3-15 MPa	therm C 15/150 T 3-15 MPa
Water output	l/h	therm C 11/130 660 l/h	therm C 11/130 T 660 l/h	therm C 13/180 780 l/h	therm C 13/180 T 780 l/h	therm C 15/150 900 l/h	therm C 15/150 T 900 l/h
Admissible overpressure	bar	therm C 11/130 145 bar	therm C 11/130 T 145 bar	therm C 13/180 200 bar	therm C 13/180 T 200 bar	therm C 15/150 170 bar	therm C 15/150 T 170 bar
Admissible overpressure	MPa	therm C 11/130 14,5 MPa	therm C 11/130 T 14,5 MPa	therm C 13/180 20 MPa	therm C 13/180 T 20 MPa	therm C 15/150 17 MPa	therm C 15/150 T 17 MPa
Motor speed	U/min	therm C 11/130 1400 U/min	therm C 11/130 T 1400 U/min	therm C 13/180 1400 U/min	therm C 13/180 T 1400 U/min	therm C 15/150 1400 U/min	therm C 15/150 T 1400 U/min
Connection Voltage	V	therm C 11/130 230 V	therm C 11/130 T 230 V	therm C 13/180 400 V	therm C 13/180 T 400 V	therm C 15/150 400 V	therm C 15/150 T 400 V
Connection Phase	~	therm C 11/130 1 ~	therm C 11/130 T 1 ~	therm C 13/180 3 ~	therm C 13/180 T 3 ~	therm C 15/150 3 ~	therm C 15/150 T 3 ~
Connection Frequency	Hz	therm C 11/130 50 Hz	therm C 11/130 T 50 Hz	therm C 13/180 50 Hz	therm C 13/180 T 50 Hz	therm C 15/150 50 Hz	therm C 15/150 T 50 Hz
Connection Amperage	A	therm C 11/130 15 A	therm C 11/130 T 15 A	therm C 13/180 8,7 A	therm C 13/180 T 8,7 A	therm C 15/150 8,7 A	therm C 15/150 T 8,7 A
Power intake	kW	therm C 11/130 3,4 kW	therm C 11/130 T 3,4 kW	therm C 13/180 4,8 kW	therm C 13/180 T 4,8 kW	therm C 15/150 4,8 kW	therm C 15/150 T 4,8 kW
Power output	kW	therm C 11/130 2,3 kW	therm C 11/130 T 2,3 kW	therm C 13/180 4,0 kW	therm C 13/180 T 4,0 kW	therm C 15/150 4,0 kW	therm C 15/150 T 4,0 kW
Power supply cable Length	m	therm C 11/130 5 m	therm C 11/130 T 5 m	therm C 13/180 7.5 m	therm C 13/180 T 7.5 m	therm C 15/150 7.5 m	therm C 15/150 T 7.5 m
Length	mm	therm C 11/130 860 mm	therm C 11/130 T 860 mm	therm C 13/180 860 mm	therm C 13/180 T 860 mm	therm C 15/150 860 mm	therm C 15/150 T 860 mm
Width	mm	therm C 11/130 580 mm	therm C 11/130 T 580 mm	therm C 13/180 580 mm	therm C 13/180 T 580 mm	therm C 15/150 580 mm	therm C 15/150 T 580 mm
Height	mm	therm C 11/130 970 mm	therm C 11/130 T 1220 mm	therm C 13/180 970 mm	therm C 13/180 T 1220 mm	therm C 15/150 970 mm	therm C 15/150 T 1220 mm
Hot water output	°C	therm C 11/130 12-80 °C	therm C 11/130 T 12-80 °C	therm C 13/180 12-80 °C	therm C 13/180 T 12-80 °C	therm C 15/150 12-80 °C	therm C 15/150 T 12-80 °C
Steam level	°C	therm C 11/130 140 °C	therm C 11/130 T 140 °C	therm C 13/180 150 °C	therm C 13/180 T 150 °C	therm C 15/150 150 °C	therm C 15/150 T 150 °C
Oil consumption at max. heating output	kg/h	therm C 11/130 5.1 kg/h	therm C 11/130 T 5.1 kg/h	therm C 13/180 5.8 kg/h	therm C 13/180 T 5.8 kg/h	therm C 15/150 6.0 kg/h	therm C 15/150 T 6.0 kg/h
Oil consumption at max. heating output	l/h	therm C 11/130 6.1 l/h	therm C 11/130 T 6.1 l/h	therm C 13/180 6.8 l/h	therm C 13/180 T 6.8 l/h	therm C 15/150 7.1 l/h	therm C 15/150 T 7.1 l/h
Oil consumption T45	kg/h	therm C 11/130 3.2 kg/h	therm C 11/130 T 3.2 kg/h	therm C 13/180 3.8 kg/h	therm C 13/180 T 3.8 kg/h	therm C 15/150 4.3 kg/h	therm C 15/150 T 4.3 kg/h
Oil consumption T45	l/h	therm C 11/130 3.8 l/h	therm C 11/130 T 3.8 l/h	therm C 13/180 4.5 l/h	therm C 13/180 T 4.5 l/h	therm C 15/150 5.1 l/h	therm C 15/150 T 5.1 l/h
Heating output	kW	therm C 11/130 55 kW	therm C 11/130 T 55 kW	therm C 13/180 60 kW	therm C 13/180 T 60 kW	therm C 15/150 65 kW	therm C 15/150 T 65 kW
Weight	kg	therm C 11/130 164 kg	therm C 11/130 T 169 kg	therm C 13/180 164 kg	therm C 13/180 T 169 kg	therm C 15/150 164 kg	therm C 15/150 T 169 kg
