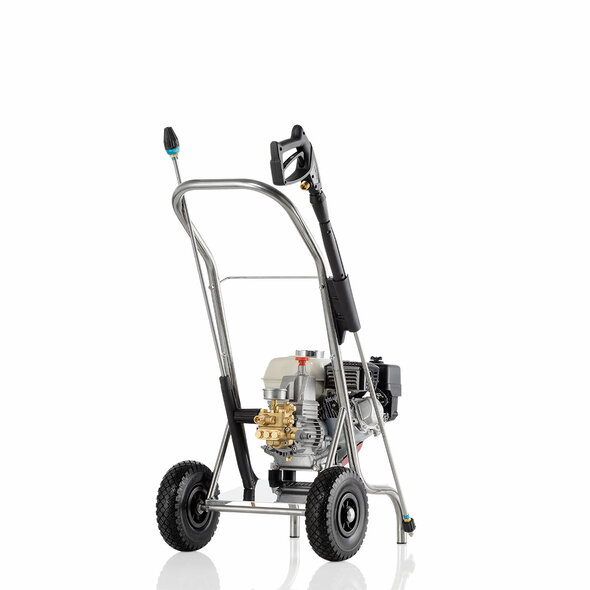

Profi-Jet B 13/150

Ord. no. 618003

With Kränzle high-pressure cleaners with gasoline engines, you are on the safe side when maximum cleaning power is required, independent of the power supply. The Profi-Jet series convinces with an extremely robust stainless steel chassis, a service-friendly Honda engine with integrated low oil protection and a practical storage system for high-pressure gun and cleaning lances. The optional speed control reduces noise and fuel consumption.

  • Quick release plug-in system D12
  • Combustion engine Honda
  • Pressure regulation
  • Twist-Stop screw connection
  • Direct suction: Suction height 2.5 m
  • Stainless steeel chassis
  • Accessory storage
  • Speed adjustment
  • Stainless steel pressure gauge
Operating pressure
30-150 bar
Water output
13 l/min
Engine
Honda GX 160 LX none
Craft
Agriculture, livestock farming
Public service, construction

Technical details

Profi-Jet B 13/150
Ord. no. 618001
Profi-Jet B 13/150
Ord. no. 618003
Profi-Jet B 13/150 T
Ord. no. 618007
Profi-Jet B 10/200
Ord. no. 618021
Profi-Jet B 10/200
Ord. no. 618023
Profi-Jet B 10/200 T
Ord. no. 618027
Profi-Jet B 16/220
Ord. no. 618045
Profi-Jet B 16/220 T
Ord. no. 618049
Profi-Jet B 20/200
Ord. no. 618065
Profi-Jet B 20/200 T
Ord. no. 618069
Profi-Jet B 16/250
Ord. no. 618085
Profi-Jet B 16/250 T
Ord. no. 618089
Ord. no. 618001618003618007618021618023618027618045618049618065618069618085618089
Operating pressure bar Profi-Jet B 13/150 30-150 bar Profi-Jet B 13/150 30-150 bar Profi-Jet B 13/150 T 30-150 bar Profi-Jet B 10/200 30-200 bar Profi-Jet B 10/200 30-200 bar Profi-Jet B 10/200 T 30-200 bar Profi-Jet B 16/220 30-220 bar Profi-Jet B 16/220 T 30-220 bar Profi-Jet B 20/200 30-200 bar Profi-Jet B 20/200 T 30-200 bar Profi-Jet B 16/250 30-250 bar Profi-Jet B 16/250 T 30-250 bar
Operating pressure MPa Profi-Jet B 13/150 3-15 MPa Profi-Jet B 13/150 3-15 MPa Profi-Jet B 13/150 T 3-15 MPa Profi-Jet B 10/200 3-20 MPa Profi-Jet B 10/200 3-20 MPa Profi-Jet B 10/200 T 3-20 MPa Profi-Jet B 16/220 3-22 MPa Profi-Jet B 16/220 T 3-22 MPa Profi-Jet B 20/200 3-20 MPa Profi-Jet B 20/200 T 3-20 MPa Profi-Jet B 16/250 3-25 MPa Profi-Jet B 16/250 T 3-25 MPa
Water output l/h Profi-Jet B 13/150 780 l/h Profi-Jet B 13/150 780 l/h Profi-Jet B 13/150 T 780 l/h Profi-Jet B 10/200 600 l/h Profi-Jet B 10/200 600 l/h Profi-Jet B 10/200 T 600 l/h Profi-Jet B 16/220 960 l/h Profi-Jet B 16/220 T 960 l/h Profi-Jet B 20/200 1200 l/h Profi-Jet B 20/200 T 1200 l/h Profi-Jet B 16/250 960 l/h Profi-Jet B 16/250 T 960 l/h
Admissible overpressure bar Profi-Jet B 13/150 170 bar Profi-Jet B 13/150 170 bar Profi-Jet B 13/150 T 170 bar Profi-Jet B 10/200 220 bar Profi-Jet B 10/200 220 bar Profi-Jet B 10/200 T 220 bar Profi-Jet B 16/220 240 bar Profi-Jet B 16/220 T 240 bar Profi-Jet B 20/200 220 bar Profi-Jet B 20/200 T 220 bar Profi-Jet B 16/250 270 bar Profi-Jet B 16/250 T 270 bar
Admissible overpressure MPa Profi-Jet B 13/150 17 MPa Profi-Jet B 13/150 17 MPa Profi-Jet B 13/150 T 17 MPa Profi-Jet B 10/200 22 MPa Profi-Jet B 10/200 22 MPa Profi-Jet B 10/200 T 22 MPa Profi-Jet B 16/220 24 MPa Profi-Jet B 16/220 T 24 MPa Profi-Jet B 20/200 22 MPa Profi-Jet B 20/200 T 22 MPa Profi-Jet B 16/250 27 MPa Profi-Jet B 16/250 T 27 MPa
Length mm Profi-Jet B 13/150 520 mm Profi-Jet B 13/150 770 mm Profi-Jet B 13/150 T 770 mm Profi-Jet B 10/200 520 mm Profi-Jet B 10/200 770 mm Profi-Jet B 10/200 T 770 mm Profi-Jet B 16/220 770 mm Profi-Jet B 16/220 T 785 mm Profi-Jet B 20/200 770 mm Profi-Jet B 20/200 T 785 mm Profi-Jet B 16/250 770 mm Profi-Jet B 16/250 T 785 mm
Width mm Profi-Jet B 13/150 360 mm Profi-Jet B 13/150 570 mm Profi-Jet B 13/150 T 570 mm Profi-Jet B 10/200 360 mm Profi-Jet B 10/200 570 mm Profi-Jet B 10/200 T 570 mm Profi-Jet B 16/220 570 mm Profi-Jet B 16/220 T 570 mm Profi-Jet B 20/200 570 mm Profi-Jet B 20/200 T 570 mm Profi-Jet B 16/250 570 mm Profi-Jet B 16/250 T 570 mm
Height mm Profi-Jet B 13/150 420 mm Profi-Jet B 13/150 990 mm Profi-Jet B 13/150 T 1005 mm Profi-Jet B 10/200 420 mm Profi-Jet B 10/200 990 mm Profi-Jet B 10/200 T 1005 mm Profi-Jet B 16/220 990 mm Profi-Jet B 16/220 T 1005 mm Profi-Jet B 20/200 990 mm Profi-Jet B 20/200 T 1005 mm Profi-Jet B 16/250 990 mm Profi-Jet B 16/250 T 1005 mm
Weight kg Profi-Jet B 13/150 35 kg Profi-Jet B 13/150 42 kg Profi-Jet B 13/150 T 50 kg Profi-Jet B 10/200 35 kg Profi-Jet B 10/200 42 kg Profi-Jet B 10/200 T 50 kg Profi-Jet B 16/220 65 kg Profi-Jet B 16/220 T 73 kg Profi-Jet B 20/200 65 kg Profi-Jet B 20/200 T 73 kg Profi-Jet B 16/250 65 kg Profi-Jet B 16/250 T 73 kg

Equipment

HP hose

HP hose

Kränzle high-pressure hoses with steel mesh are durable, flexible and…

Ord. no. 44878
Underbody lance with extension

Underbody lance with extension

Two-part underbody lance with nozzle size 07 plug-in system D12

Ord. no. 410755
Sandblasting set

Sandblasting set

In wet blasting, the blasting material (usually sand) is sprayed onto the…

Ord. no. 41068
Rotating washing brush

Rotating washing brush

The rotating washing brush removes even stubborn dirt from sensitive surfaces…

Ord. no. 410509
Rotating washing brush

Rotating washing brush

The rotating washing brush removes even stubborn dirt from sensitive surfaces…

Ord. no. 410508
Rotating washing brush

Rotating washing brush

The rotating washing brush removes even stubborn dirt from sensitive surfaces…

Ord. no. 410507
High-performance gear oil

High-performance gear oil

Kränzle high-performance gear oil was specially developed for use in…

Ord. no. 400932
Suction hose with suction filter

Suction hose with suction filter

The suction hose can be used to draw water through the high-pressure cleaner…

Ord. no. 150383
Foam lance with 1 l container

Foam lance with 1 l container

Foam lance with container 1l plug-in nipple D12 Kränzle

Ord. no. 135303
Water filter

Water filter

Water inlet filters prevent foreign bodies or dirt from entering the…

Ord. no. 133201
Water filter

Water filter

Water inlet filters prevent foreign bodies or dirt from entering the…

Ord. no. 133005
Sludge sucker with 3.8 m

Sludge sucker with 3.8 m

Vacuuming sludge from ponds and poolsSludge vacuum cleaner with 3.8 m suction…

Ord. no. 41104
Lance extension handle protection 342 mm

Lance extension handle protection 342 mm

Lance extension Handle protection 342 mm Lance with plug-in nipple D12 and…

Ord. no. 411544
Lance extension 1000 mm

Lance extension 1000 mm

By means of lance extensions, the reach of Kränzle cleaning lances can be…

Ord. no. 411546
Mud vacuum

Mud vacuum

Suction of sludge from ponds and poolsFor high-pressure cleaners from 10…

Ord. no. 41791
Kränzle Marine 25 litres

Kränzle Marine 25 litres

Kränzle Marine 25 litre intensive cleaner

Ord. no. 412732
Kränzle Marine 5 litres

Kränzle Marine 5 litres

Kränzle Marine 5 litre intensive cleaner

Ord. no. 412731
Kränzle Plus 25 litres

Kränzle Plus 25 litres

Kränzle Plus 25 litre special cleaner

Ord. no. 412722
Kränzle Plus 5 litres

Kränzle Plus 5 litres

Kränzle Plus 5 litre special cleaner

Ord. no. 412721
Kränzle Neutral 25 litres

Kränzle Neutral 25 litres

Kränzle Neutral 25 litre universal cleaner

Ord. no. 412712
Kränzle Neutral 5 litres

Kränzle Neutral 5 litres

Kränzle Neutral 5 litre universal cleaner

Ord. no. 412711
Limescale remover 1 l

Limescale remover 1 l

Descaling of high-pressure cleaners

Ord. no. 412580
Limescale remover, 12 x 1 l

Limescale remover, 12 x 1 l

Descaling of high-pressure cleaners, 12 x 1 l

Ord. no. 412570
Lance extension 1500 mm

Lance extension 1500 mm

By means of lance extensions, the reach of Kränzle cleaning lances can be…

Ord. no. 411548
Lance extension 1250 mm

Lance extension 1250 mm

By means of lance extensions, the reach of Kränzle cleaning lances can be…

Ord. no. 411547
Water filter

Water filter

Water inlet filters prevent foreign bodies or dirt from entering the…

Ord. no. 133003
Ball valve with 2x

Ball valve with 2x

Ball valve with 2x ST 30 screw connection

Ord. no. 132912
hose connector

hose connector

Hose connector 2 x M22 AG

Ord. no. 13286
Pipe cleaning hose 10 m

Pipe cleaning hose 10 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 12550
WC - Lance

WC - Lance

WC lance 500 mm with nozzle D25055 and control nozzle plug-in system D12

Ord. no. 12540
Double lance with rotary knob

Double lance with rotary knob

Kränzle double lances are equipped with a high-pressure nozzle and a…

Ord. no. 125302
M2000 pistol short

M2000 pistol short

Kränzle safety shut-off guns are comfortable to hold and allow fatigue-free work…

Ord. no. 12492
Lance adapter Plug nipple D12

Lance adapter Plug nipple D12

Lance adapter Plug nipple D12 to M22x1.5 screw connection, anti-twist protection

Ord. no. 124415
Lance with control nozzle D2505

Lance with control nozzle D2505

The working pressure can be regulated directly on the lance and adjusted for…

Ord. no. 12431-D2505
Lance with dirt killer 05

Lance with dirt killer 05

On insensitive surfaces, the high-pressure nozzle of the dirt killer with its…

Ord. no. 12425-05
Lance with flat spray nozzle D2505

Lance with flat spray nozzle D2505

Stainless steel lances with flat spray nozzles produce a uniform, fan-shaped…

Ord. no. 12420-D2505
Articulated lance with handle

Articulated lance with handle

Articulated lance 1100 mm without nozzle Plug-in nipple D12

Ord. no. 121801-XXX
Double lance with handle

Double lance with handle

Kränzle double lances are equipped with a high-pressure nozzle and a…

Ord. no. 12133
Foam lance with container 2l

Foam lance with container 2l

Foam lance with container 2l plug-in nipple D12 Kränzle

Ord. no. 135313
Pipe cleaning hose 15 m

Pipe cleaning hose 15 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 125501
Pipe cleaning hose 15 m

Pipe cleaning hose 15 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 125501-F
Pipe cleaning hose 20 m

Pipe cleaning hose 20 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 125502
Splash guard all washing lances

Splash guard all washing lances

Splash guard all washing lances completeDimensions LxW: 285x190

Ord. no. 132600
Cleaning brush transverse

Cleaning brush transverse

Washing brush with natural hair for gentle cleaning of sensitive surfaces. From…

Ord. no. 128064
Cleaning brush transverse

Cleaning brush transverse

Washing brush with natural hair for gentle cleaning of sensitive surfaces. From…

Ord. no. 128063
Cleaning brush transverse

Cleaning brush transverse

Washing brush with natural hair for gentle cleaning of sensitive surfaces. From…

Ord. no. 128062
Cleaning brush transverse

Cleaning brush transverse

Cleaning brush transverse 750mm Tube E: Plug-in nipple D12

Ord. no. 128061
Pipe cleaning hose 10 m

Pipe cleaning hose 10 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 12550-F
Pipe cleaning hose 30 m

Pipe cleaning hose 30 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 125504-F
Pipe cleaning hose 30 m

Pipe cleaning hose 30 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 125504
Pipe cleaning hose 25 m

Pipe cleaning hose 25 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 125503-F
Pipe cleaning hose 25 m

Pipe cleaning hose 25 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 125503
Pipe cleaning hose 20 m

Pipe cleaning hose 20 m

With Kränzle pipe cleaning hoses, clogged drain pipes or gutters can be cleaned…

Ord. no. 125502-F
Water filter

Water filter

Water inlet filters prevent foreign bodies or dirt from entering the…

Ord. no. 13310

Downloads

Operating instruction

(PDF | 7 MB)
back to list
